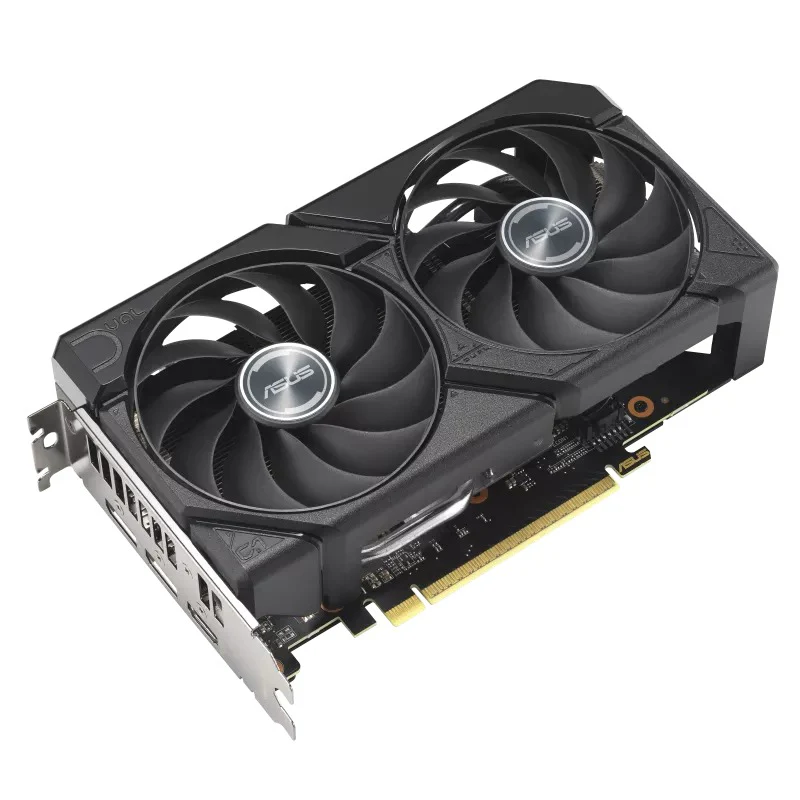

Asus Dual AMD RADEON RX 9060 XT 16GB Gaming Graphics Card - Black

The Asus Dual AMD Radeon RX 9060 XT is a compact dual-fan graphics card designed for modern gaming and high-resolution workloads. It delivers stable performance with factory tuning options, PCI Express 5.0 support, and efficient cooling in a 2.5-slot design.

Key Features

• AMD Radeon RX 9060 XT GPU with dual-fan cooling.
• 16GB GDDR6 memory for modern games and creative workloads.
• PCI Express 5.0 interface for current platforms.
• Factory OC support via ASUS GPU Tweak III.
• Support for high-resolution displays up to 8K.
• Compact design suitable for mid-tower and smaller cases.

Technical Specs

General

• Model: DUAL-RX9060XT-16G

GPU

• Graphic Engine: AMD Radeon RX 9060 XT
• Stream Processors: 2048
• Engine Clock:
• OC Mode (GPU Tweak III): up to 3250 MHz Boost, up to 2640 MHz Game Clock
• Default Mode: up to 3230 MHz Boost, up to 2620 MHz Game Clock

Memory

• Memory Size: 16GB
• Memory Type: GDDR6
• Memory Speed: 20 Gbps
• Memory Interface: 128-bit

Bus and API Support

• Bus Standard: PCI Express 5.0
• OpenGL: 4.6

Display Support

• Maximum Digital Resolution: 7680 x 4320
• Display Outputs:
• 1 x HDMI 2.1b
• 2 x DisplayPort 2.1a
• HDCP Support: 2.3
• Maximum Displays: 3

Power and Requirements

• Recommended Power Supply: 550W
• Power Connector: 1 x 8-pin
• Slot Size: 2.5-slot

Physical

• Dimensions: 202 x 120 x 49 mm

Software

• ASUS GPU Tweak III
• AMD graphics drivers

Included Accessories

• Thank you card
• Speed setup manual
