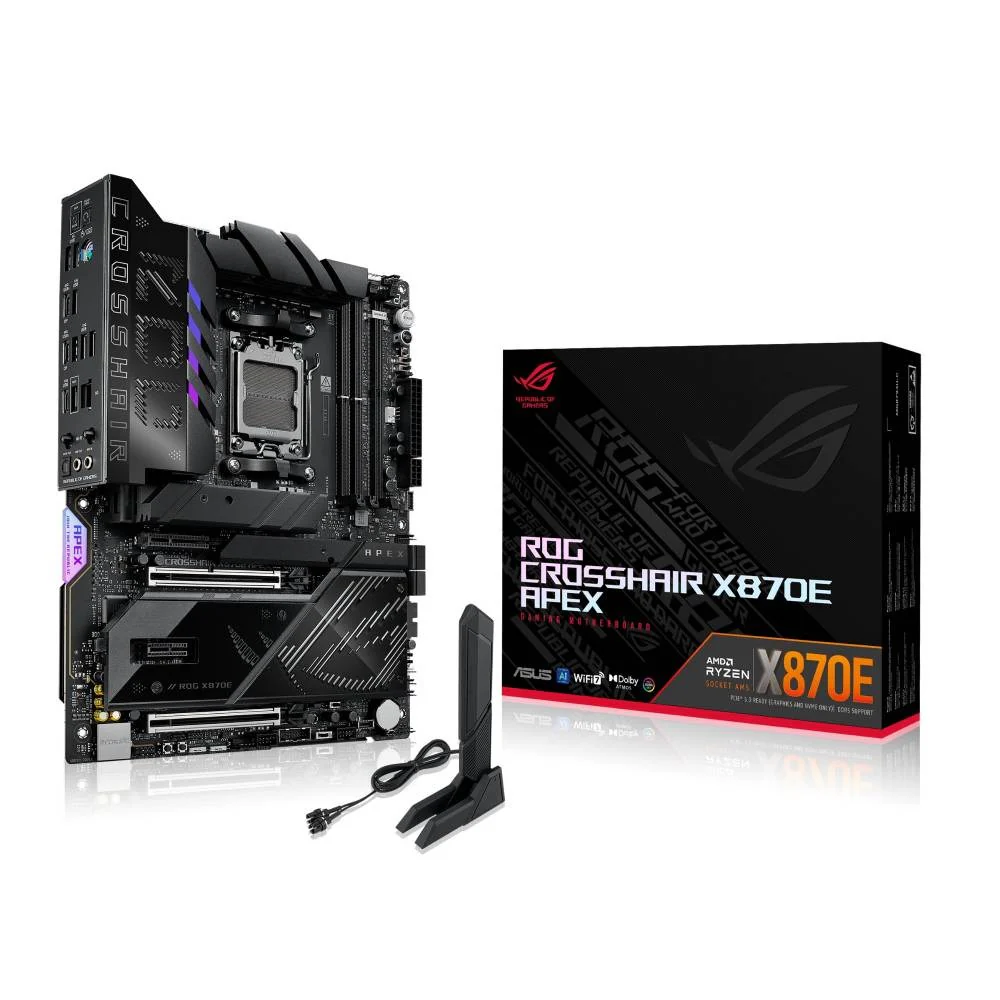

ASUS ROG CROSSHAIR X870E APEX- MOTHERBOARD

This high-end X870E motherboard supports AMD Ryzen™ 9000, 8000, and 7000 series desktop processors on the AM5 socket. It features PCIe 5.0 x16, five M.2 slots (up to PCIe 5.0), dual USB4, Wi-Fi 7, and full DDR5 OC support up to 9600+ MT/s. Built for enthusiasts, overclockers, and creators, it includes ROG tuning tools, a robust cooling system, and next-gen I/O for ultra-performance builds.

Key Features

• Compatible with AMD Ryzen™ 9000 / 8000 / 7000 CPUs (AM5 socket)
• PCIe 5.0 x16 GPU slot + 3× M.2 PCIe 5.0 slots (Ryzen 9000/7000 only)
• DDR5 support up to 9600+ MT/s (OC) with Ryzen 8000 processors
• Dual USB4 (40Gbps) ports with DP 1.4a output
• Realtek 5Gb LAN + Wi-Fi 7 and Bluetooth 5.4
• SupremeFX ALC4080 7.1 audio with S/PDIF out and premium caps
• 2× USB-C front panel connectors (1 with 60W PD/QC4+)
• Full overclocking suite: LN2 Mode, Retry, Safe Boot, ProbeIt
• ROG DIMM.2 included for 2 additional M.2 drives

Technical Specifications

Feature	Details
CPU Support	AMD Ryzen™ 9000 / 8000 / 7000 Series, AM5
Chipset	AMD X870E
Memory Support	2× DDR5 DIMMs, up to 128GB
PCIe Slots	2× PCIe 5.0 x16 (x16 or x8/x8), 1× PCIe 4.0 x4, 1× PCIe 3.0 x1
M.2 Storage	3× PCIe 5.0 M.2 (9000/7000 only), 2× PCIe 4.0 M.2 (via DIMM.2), 4× SATA
RAID Support	RAID 0/1/5/10 (varies by CPU generation)
Networking	Realtek 5Gb LAN + Wi-Fi 7 (2×2) + Bluetooth 5.4
Rear USB Ports	2× USB4 (Type-C), 6× USB 10Gbps (5× A + 1× C), 2× USB 5Gbps (A)
Front USB Ports	1× USB-C (20Gbps w/ 60W PD), 1× USB-C (20Gbps), 4× USB 5Gbps, 4× USB 2.0
Audio	ROG SupremeFX ALC4080, 7.1ch, 32-bit/384kHz, Savitech AMP, optical out
RGB Headers	3× Addressable Gen2
Cooling Features	6× Fan headers (CPU, AIO, Full-speed, W_PUMP+), M.2 & VRM heatsinks, backplate
Power Connectors	24-pin ATX, 2× 8-pin CPU, 1× 8-pin PCIe
Form Factor	ATX (30.5 × 24.4 cm)
